Benchmark Connector is pleased to announce the addition of the Detoronics franchise. Detoronics manufactures high quality Hermetically Sealed connectors which include Commercial versions of MIL-DTL-38999, MIL-DTL-5015, and MIL-DTL-26482 to name a few. We are excited to offer our customers Detoronics' great line of Hermetic connectors off the shelf, call Benchmark today and see why we are the NEW alternative for your Hermetic connector requirement with Detoronics.
“At Benchmark we are DESIGN SPECIALISTS, let us help you with your PC Tail connector or CUSTOM CONNECTOR requirements. It’s as easy as sending us your requirements or drawing and we will take care of the rest.
Benchmark does Firewall Connectors all day, every day.
Firewall connectors perform a very important task of allowing electrical circuits to penetrate the engine firewall of commercial and military aircraft without compromising the integrity of the flame barrier of the firewall..

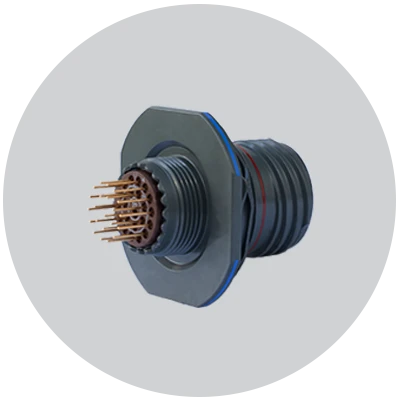

D38999 Series III PC Tail
Let Benchmark take a rugged, highly reliabile Military Spec connector and make it even better by adding PCTail contacts.

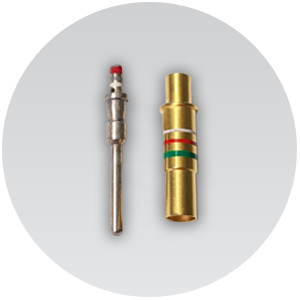

Eliminate those bulky pigtails, maximize signal integrity and do away with the labor envolved in crimping each termination by using PC Tail contacts for a direct board mounting solution.
Just provide your Benchmark connector specialist with your mounting hole diameters and the three dimensions listed below on the preferred shell style and we will do the rest.
WORLD CLASS TECHNICAL
Benchmark’s technical support and sales staff are available to assist you on line by clicking the "Chat With Us" Graphic, by e-mail at firstname.lastname@example.org or by telephone between the hours of 9:00 AM and 5:00 PM (Eastern Standard Time), Monday throungh Friday at 1-800-896-7153 toll-free in North America.
Whether Mil type, D-Sub or Filtered connector, Benchmark has it.
We provide Chip Cap to Discoidal to Pi Filters for selected Capacitance based on the out of limit frequencies. Our Chip Caps solutions from 4 pF to 47,000 pF (40dB @100 MHz) or Dicoidals solutions from 100 pF to 40,000 pF (60 dB @100 MHz) or Pi Filtering solutions from 50 pF to 8,000 pF (75bB @400MHz) or Planar Arrays Medium to High Capacitance when needed.
Custom Designed connectors
Let Benchmark's Design Specialist help you with connectors to meet your most exacting specifications.
Just provide your Benchmark Design specialist with your requirements and dimensional information and we will do the rest.

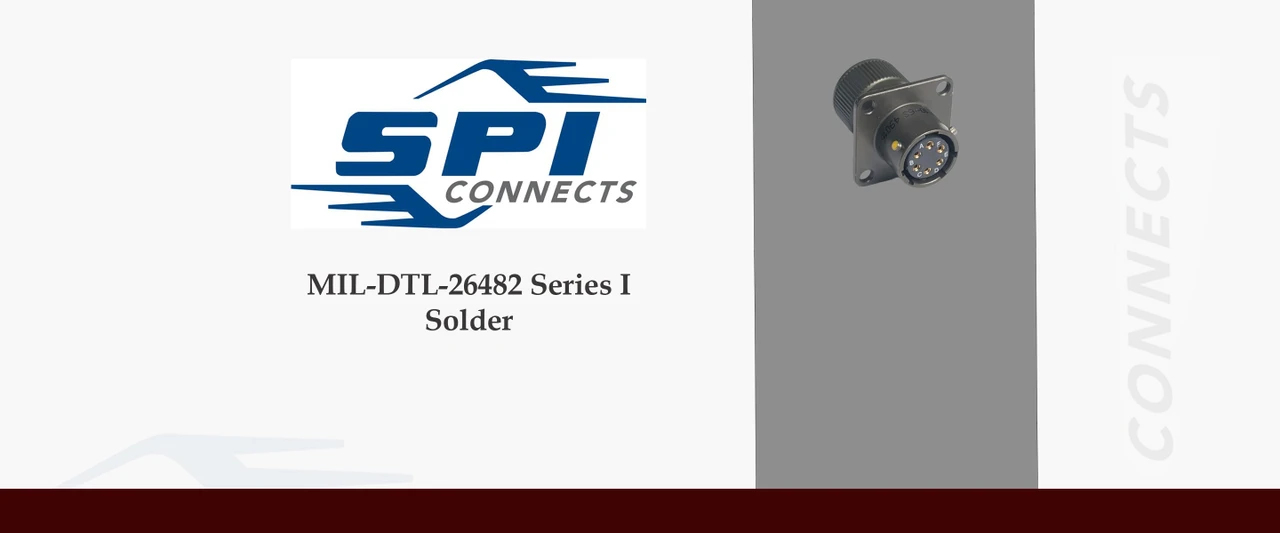

Benchmark specializes in hard to find rotations for MIL-DTL-38999, MIL-DTL-26482 Series I and II, MIL-DTL-83723 Series III, MIL-DTL-5015 to mention a few. The company also stocks many Firewall connectors for MIL-DTL-83723 Series III and MIL-DTL-5015. We stock a complete line of connector components to custom assemble all types of MIL-DTL-26500, MIL-DTL-24308, MIL-DTL-83513, MIL-DTL-5015, MIL-DTL-24682 Series I and II, MIL-DTL-83723 Series III, and MIL-DTL-38999 Series I, II & III.
We also stock a complete line of military SAE AS85049 (MIL-C-85049) and commercial connector back shells and accessories.
Enter a product number or partial product number in the Search For box below, then click the 'Search' button to begin searching the Benchmark Connector database.
If you are unsure of the exact product number, simply enter a portion of the number and the search results will bring up all items that contain the numbers/letters you searched for. Example: search for ms3476 and you will find MS3476A 8-33A and MS3476A 8-33P and MS3476A10- 6A etc.
Benchmark Connector Corporation was founded in 1997 on the premise that the big national distributors thought it was no longer important to have personalized customer service, and that is even more evident today. Since its creation the company has been successful in providing much-needed items to the industry with quick deliveries and competitive prices.
Our Sales staff are highly trained knowledgeable connector specialists, not just order takers and have over 60 years of Electrical Connector experience to help with your urgent requirements.
Our large inventory of in stock components allows Benchmark to custom assemble the specific part to meet your requirement, and deliver that product within 2-3 days, or even less with our special expedited "Same Day Service".
