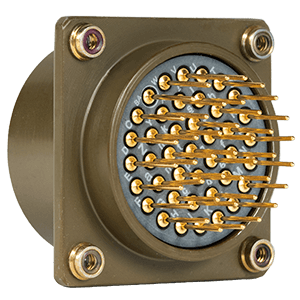

Benchmark offers 26482 style connectors with pc-tail contacts for solder mounting directly to a printed circuit board. The 26482 series has a large selection of high density contact layouts which makes for an ideal candidate to use in conjunction with PC Tail contacts. All of our offerings for this series are designed using MIL-DTL-26482 Series I specifications which makes the fit, form, and function comparable to the military versions. All receptacle connectors are inter-mateable with mil-spec and commercial plug connectors. See the details below for the different shell styles and finishes.
Design Characteristics
- -Connectors meet all applicable requirements of MIL-DTL-26482
- -Contacts meet all applicable requirements of AS39029
- -Variety of Shell Styles: Wall Mount, Box Mount, and Jamnut.
- -Plating Options: Olive Drab & Electroless Nickel.
- -Range of layouts offering #20, #16, and #12 PCB contact sizes
