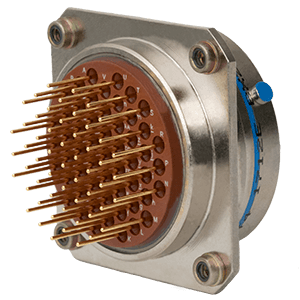

Benchmark offers D38999 Series II style connectors with pc-tail contacts for solder mounting directly to a printed circuit board. Series II has a large selection of high density contact layouts and low profile shell styles which makes for an ideal candidate to use in conjunction with PC Tail contacts. All of our offerings for this series are designed using MIL-DTL-38999 Series II specifications which makes the fit, form, and function comparable to the military versions. All receptacle connectors are inter-mateable with mil-spec and commercial plug connectors. See the details below for the different shell styles and finishes.
Design Characteristics
- - Connectors meet all applicable requirements of MIL-DTL-38999
- - Contacts meet all applicable requirements of AS39029
- - Full intermateability with standard MS27473 & MS27484 plugs
- - Range of layouts offering #22, #20, and #16 PCB contact sizes
Connector Shell Options
- - Wall Mount Receptacle
- - Front, Box Mount Receptacle
- - Rear, Box Mount Receptacle
- - Jam nut Receptacle
Material and Finish Options
- - A: Aluminum shell, silver to light iridescent yellow
- - B: Aluminum shell, olive drab cadmium over electroless nickel
- - C: Aluminum shell, black anodized finish
- - F: Aluminum shell, electroless nickel finish
