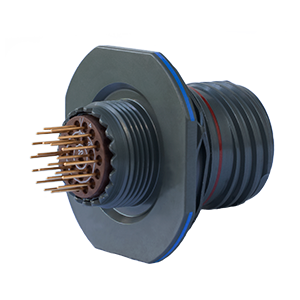

Benchmark offers D38999 style connectors with pc-tail contacts for solder mounting directly to a printed circuit board. The D38999 series has a large selection of high density contact layouts which makes for an ideal candidate to use in conjunction with PC Tail contacts. All of our offerings for this series are designed using MIL-DTL-38999 Series III specifications which makes the fit, form, and function comparable to the military versions. All receptacle connectors are inter-mateable with mil-spec and commercial plug connectors. See the details below for the different shell styles and finishes.
Design Characteristics
- - Connectors meet all applicable requirements of MIL-DTL-38999
- - Contacts meet all applicable requirements of AS39029
- - Range of layouts offering #22, #20, and #16 PCB contact sizes
- - Clinch nuts available on wall mount and box mount style shells
- - Full intermateability with standard D38999/26 plugs
Material and Finish Options
- - F: Aluminum shell, electroless nickel finish
- - W: Aluminum shell, olive drab cadmium over electroless nickel
- - K: Stainless steel shell, passivated
- - T: Aluminum shell, teflon finish
- - Z: Aluminum shell, black zinc finish
Connector Shell Styles
Wall Mount
D38999/20 Style
Box Mount
TV02 Style
Jam Nut Receptacle
D38999/24 Style
