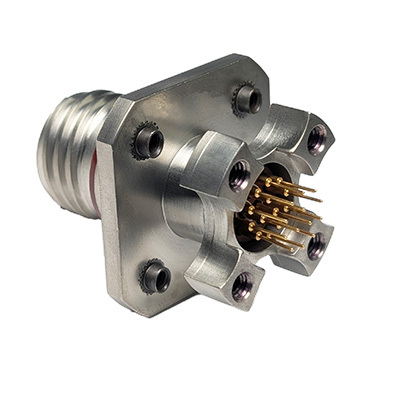

Benchmark offers 38999-style series III receptacles with double flange configurations for solder mounting directly to a PCB. The D38999 series has a large selection of high density contact layouts which makes for an ideal candidate to use in conjunction with PC Tail contacts. All receptacle connectors are inter-mateable with mil-spec and commercial plug connectors. See the details below for the different shell styles and finishes.
Design Characteristics
- - Connectors meet all applicable requirements of MIL-DTL-38999 Series III
- - Designed for use in high vibration and harsh environments.
- - Contacts meet all applicable requirements of AS39029
- - Range of layouts offering #22, #20, and #16 PCB contact sizes
- - Integrated standoffs enable secure PCB mounting while relieving stress on solder connections.
- - Available in box mount and jam nut shell styles.
- - Full intermateability with standard D38999/26 plugs
Material and Finish Options
- - F: Aluminum shell, electroless nickel finish
- - W: Aluminum shell, olive drab cadmium over electroless nickel
- - K: Stainless steel shell, passivated
- - T: Aluminum shell, teflon finish
- - Z: Aluminum shell, black zinc finish
