PC-Tail Connectors
PC-Tail Contacts | PCB Connectors

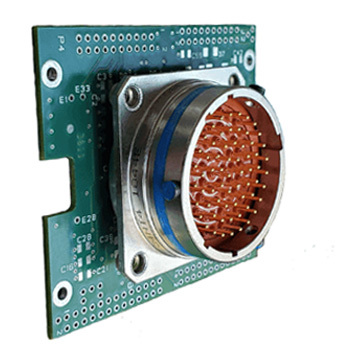

Circular Connectors for Printed Circuit Board Applications
Benchmark offers a large selection of circular connector shell styles and insert layouts populated with PC-Tail contacts. These receptacle connectors will mate with existing mil-spec & commercial equivalent plug connectors. Whether your application needs a commercial 'off the shelf' or a customized connector we can meet your design needs. All connectors come with high-reliability PCB contacts installed.
All custom orders come with
full traceability back to Benchmark
Connector. Our certificate of
conformance states the
connectors provided either
meet or exceed the current
standards.
What are PC-Tail Contacts?
PC-Tail Contacts, also referred to as PCB Contacts or Printed Circuit Tail contacts, are a direct-termination solution used for soldering contacts onto a Printed Circuit Board (PCB) or flex cable. This method
is ideal for space-constrained applications, offering significant advantages such as eliminating cumbersome wiring, maximizing
space savings, and reducing overall weight. Additionally, PC-Tail Contacts streamline the production process, resulting in faster assembly times compared to using traditional wire harnesses.
Tags
• D38999 PCB Board Mount
• D38999 PCB Board Connector
• D38999 PCB Contact
• D38999 PC-Tail Connectors
• PC-Tail Contacts
• PC-Tail Connector
• PCB Circular Connector
• Printed Circuit Tail Contacts
• Double Flange PCB Connector
• PCB Mount Circular Connector
Benefits of using PC-Tail contacts with military style connectors.
1) Eliminates cumbersome wiring resulting in a reduction of weight.
2) Space savings from the elimination of wiring or wire harnesses.
3) Faster assembly times compared to traditional wire harnesses.
4) Variety of receptacle shells and layouts to choose from depending on application.
5) Customization: Numerous options for stick-out lengths and tail diameters.
Have A Question?
Contact us today for a quote
or any technical questions.
Mil-Spec style receptacles available w/ PC-Tail contacts
26482 PCB
Style Shells

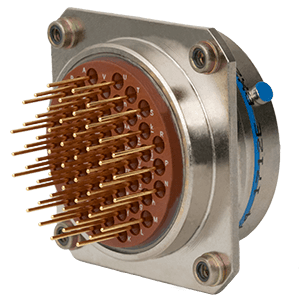

Bayonet Coupling - MS3110*, MS3112*, MS3114*

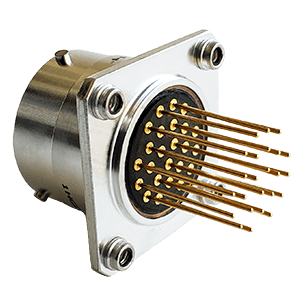

26500 PCB
Style Shells
Bayonet or Threaded - MS24264*, MS24265*

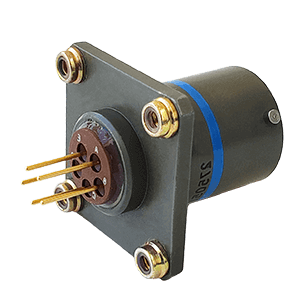

38999 Series I
PCB Style Shells
Bayonet Coupling - MS27468*, MS27505*
38999 Series II
PCB Style Shells
Bayonet Coupling - MS27474*, MS27508*

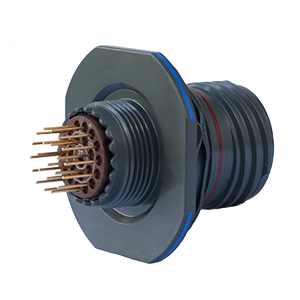

38999 Series III
PCB Style Shells
ACME Threaded Coupling - D38999/20*, D38999/24*
