Part Number Prefix: M83513/01 thru M83513/31

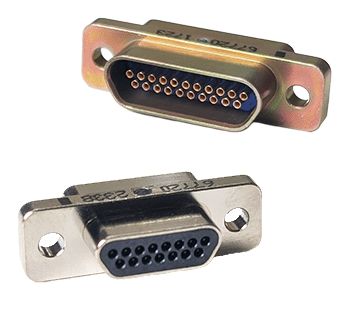

MIL-DTL-83513 is a US military specification that governs the requirements for microminiature, rectangular electrical connectors with a polarized shell, often referred to as Micro-D connectors. These high-density connectors are designed for applications where space, weight, and reliability are critical, such as in aerospace, military, space, and harsh industrial environments. This series offers eight different shell sizes and accommodates anywhere from 9 to 100 contacts.
Design Characteristics
- -Small size / High reliability connector
- -Light weight with high density contact configurations
- -Accepts wire gauge size: AWG 24 thru AWG 32
- -Durability: 500 Mating Cycles
- -Available in a variety of contact configurations (MIN/MAX): 9, 15, 21, 25, 31, 37, 51, 100
- -Contacts are potted with epoxy
Applications
Aerospace
Defense
Industrial
Space
Franchised Distributor
Benchmark Connector Corp. is an authorized distributor for Cristek Interconnects. Every connector order includes a 'Certificate of Conformance' with full traceability back to the manufacturer. Our facility has been government‑audited and approved to assemble a wide variety of military connectors. Benchmark is listed on the U.S. Government’s Qualified Parts List (QPL) for authorized assembly and distribution (Category C) allowing us the flexibility to build exactly what you need.
