SPI Connects

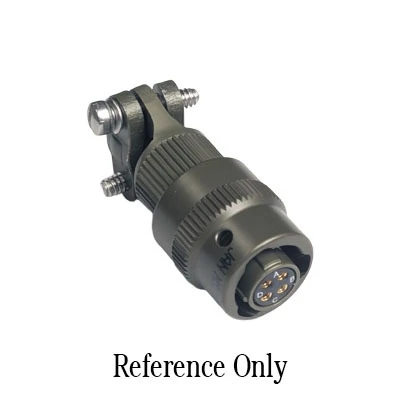

MS3116E 8-3SW

SPI Connects MIL-DTL-26482 Series I (Solder)

The MIL-DTL-26482 Standard Series I bayonet connector is miniature, circular with quick disconnect bayonet coupling. It is widely used on applications requiring a general-purpose, miniature cylindrical bayonet connector.

Product Attributes

  • Benchmark Part Number MS3116E 8-3SW
  • Manufacturer Part Number MS3116E 8-3SW
  • Tariff Info (HTS) 8536.69.4020
  • RoHS Compliant No

Specifications

  • Military Specification MIL-DTL-26482 Series I
  • Series 26482 Series I
  • Shell Size 8
  • Insert Arrangement 8-3
  • Contact Type M39029
  • Shell Material Aluminum
  • Contact Plating Gold
  • Keying Position W
  • Products Category SPI Connects MIL-DTL-26482 Series I (Solder)
  • Manufacturer SPI Connects
  • SKU MS3116E 8-3SW

Detailed description

  • Description

    Circular Connector, Mil-Spec, Medium Sized, Bayonet Coupling, Solder Contacts

Documentation

  • VAD Authorization Letter SPI Connects Certificate
  • Datasheet [MIL-DTL-26482 I Catalog](/content/catalogs/spi-connects-26482-catalog.pdf)

Availability

  • Immediate Shipment 17pcs
  • Factory Leadtime 16 Weeks
  • Minimum/Mutiple 1/1
  • Current Stock 44

Pricing

Qty. Unit Price Ext. Price
1+ $34.58 $34.58
Adding to cart… The item has been added
Get A Quote
Total
$34.58
!
✓
